Standard Features
- Metal roof
- Solar-ready roof structure
- Electrical wiring
- Plumbing system
- Windows and exterior doors
- Flooring
- Interior wall and ceiling finishes
- LED lighting
- Shower unit
- Toilet
Style BL
Premium Two-Story Loft Residence

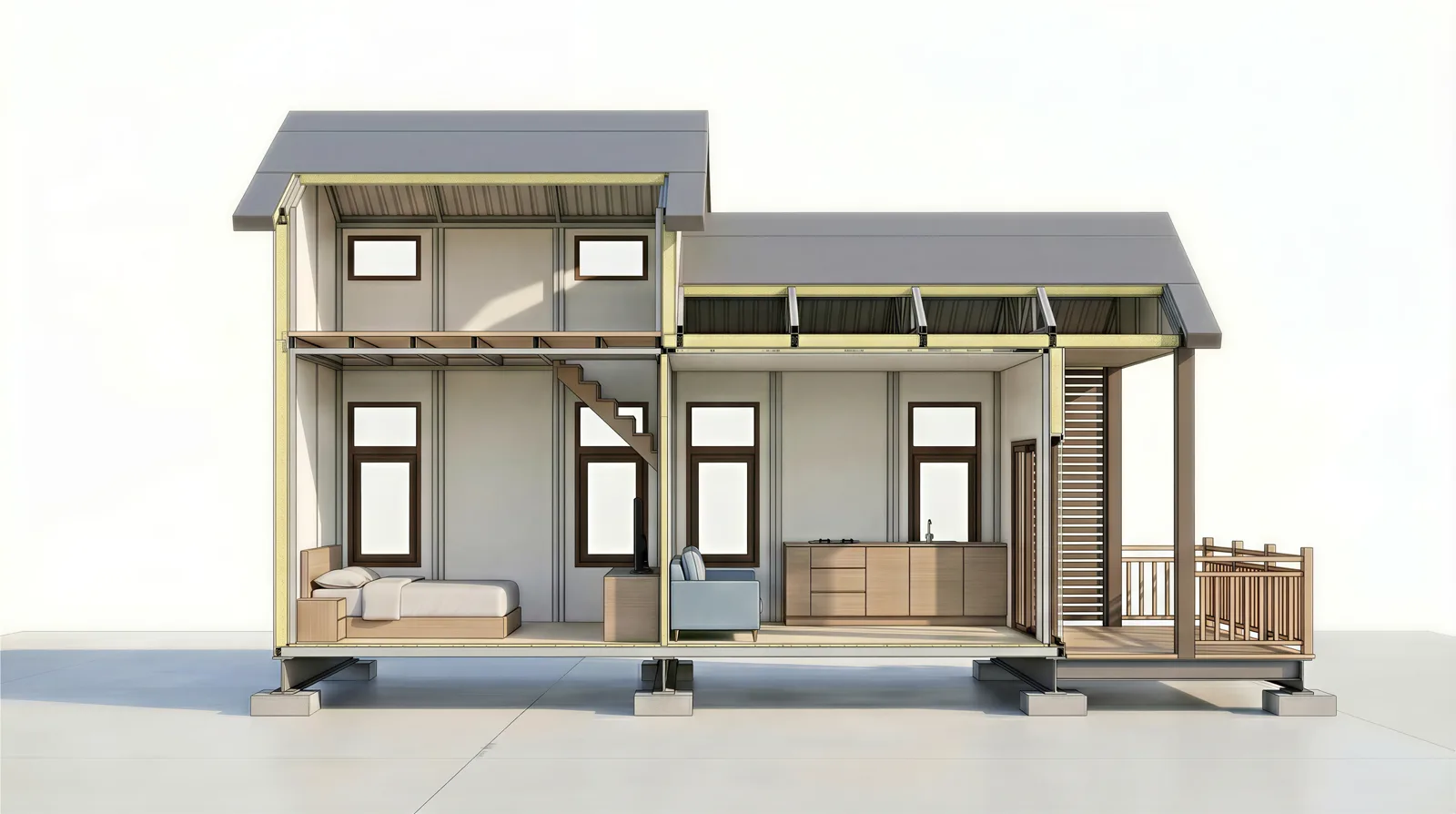

A compact modular home with a dedicated loft above the main living level and a galvanized steel frame.
Layout & Specifications

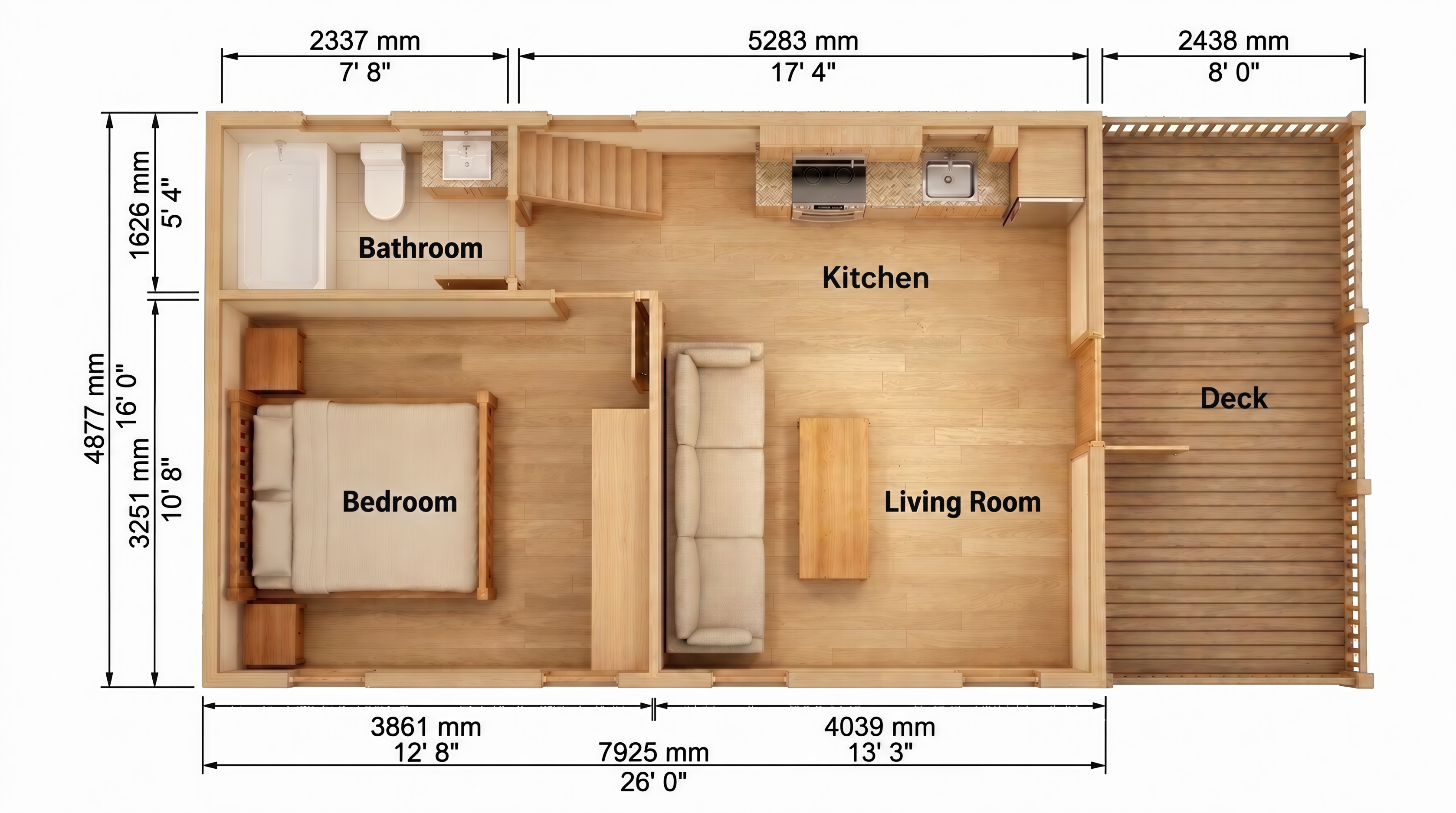

A one-bedroom main floor combines a kitchen, living area and bathroom, with a separate loft above and a porch outside.
- Main-floor interior
- 416 sq ft / 38.6 m²
- Loft
- 174 sq ft / 16.2 m²
- Porch
- 128 sq ft / 11.9 m²
- Total area
- 718 sq ft / 66.7 m² — Includes main-floor interior, loft and porch.
- Exterior dimensions
- 33' 11 3/4" L × 16' 0 1/2" W / Approx. 10,357 × 4,890 mm
- Bedrooms / Bathrooms
- 1 / 1
- Roof
- Standard metal roof
- Solar
- Solar-ready; BIPV glass roof optional
Areas and dimensions are approximate; final drawings and specifications are subject to project confirmation.
Fast On-Site Assembly
- Factory-prefabricated components
- Easy on-site assembly
- Additional loft space
Gallery
Standard Features
Optional Upgrades
Applications

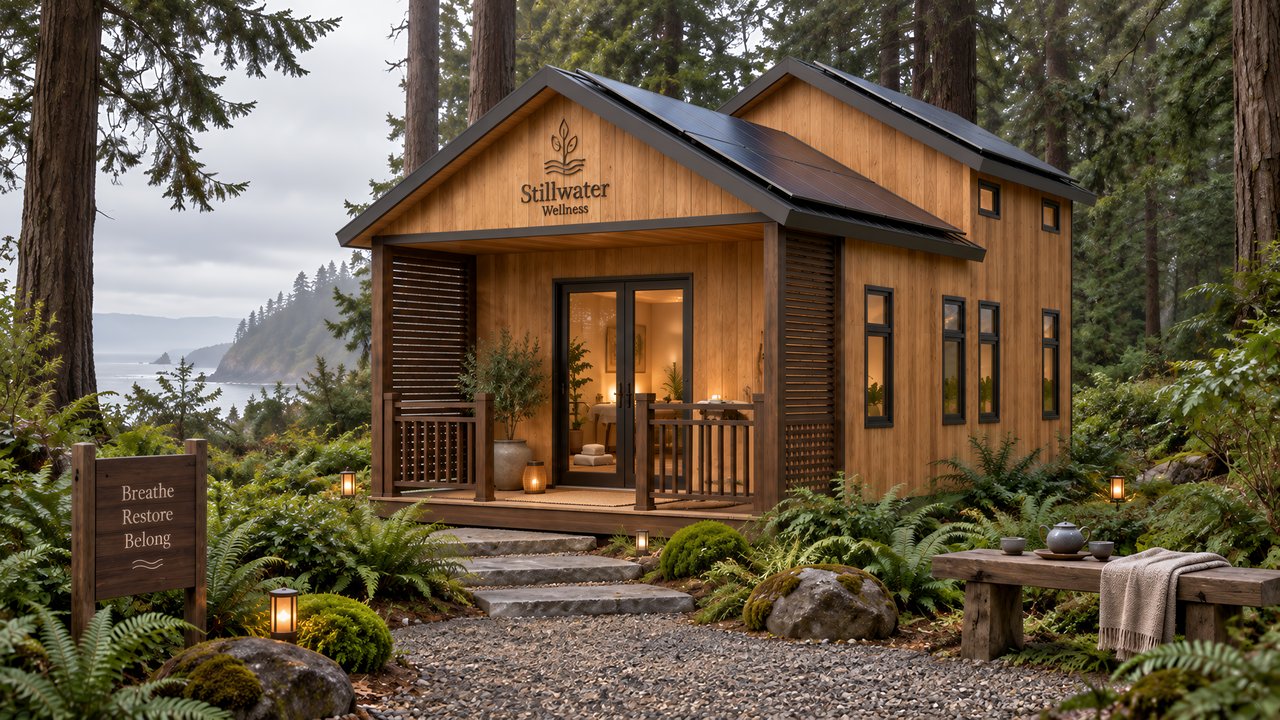

A one-bedroom main floor with an additional loft for guest stays, work, or a vacation retreat.
